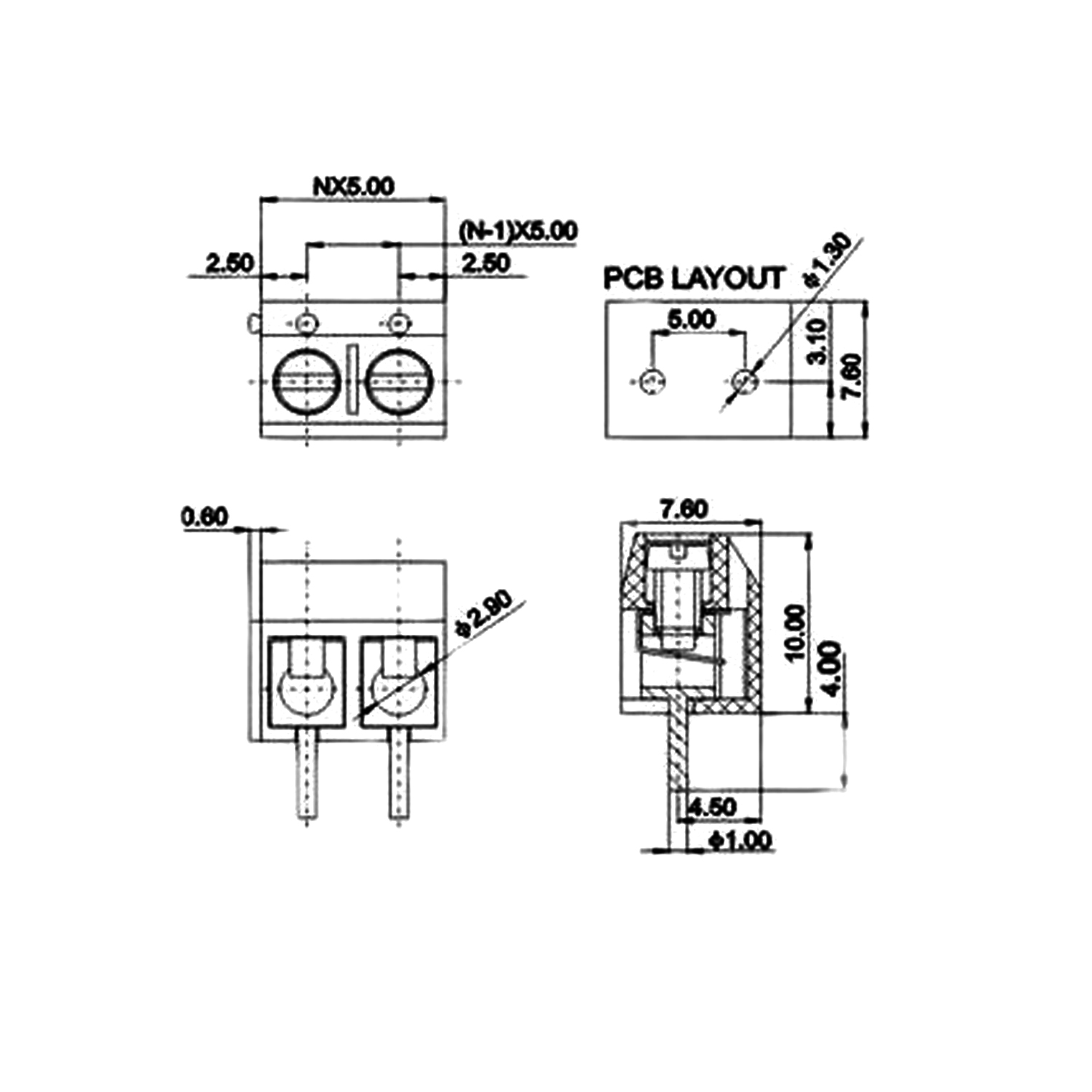

KF301/MF301 2pin

Pin Pitch: 5.0mm

Poles: 2P

Screw: M2.5 Steel Zinc plated

Wire guard: phosphor bronze, Ni plated or stainless steel

Pin header: Brass, Tin plated

Housing: PBT, UL94V-0

Color: Blue

Rated current: 16A

Withstanding voltage: AC200V/1Min

Temp range: -30~+120 Celsius

MAX Soldering: +150 Celsius for 5sec

Torque: 0.4 Nm (3.5lb.in)

Strip length: 4.5-5mm.

Wire Range: AWG 16-24 Wires
